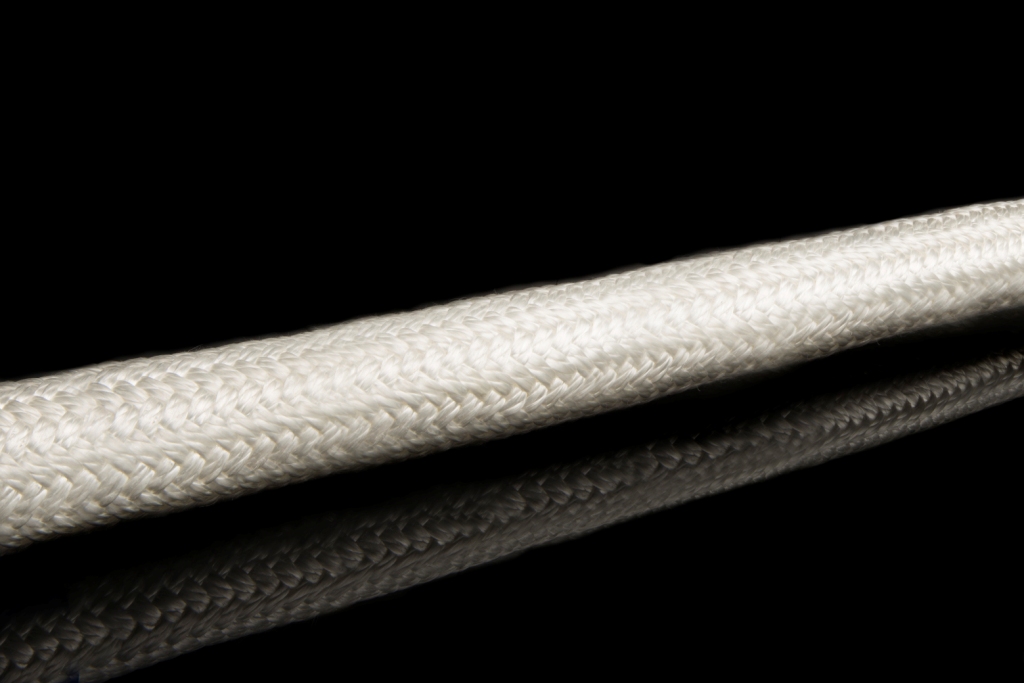

MAGNARO®-HMPE Plus Fiber Rope
Description
HMPE (High-modulus polyethylene) fibers are produced by gel-spinning ultra-high molecular weight polyethylene (UHMWPE). It has a very low coefficient of friction and is extremely resistant to abrasion. The strength is higher than that of conventional steel wire rope and the corresponding weight is up to 7 times lower. Its better handling characteristics, buoyancy and increased safety (no lash back) are especially appreciated in towing and mooring applications.
The cover can be made from polyester or HMPE, giving the rope extra protection against abrasion and thus increasing the service life of the rope.
Features & Benefits
- Fibers are produced by gel-spinning ultra-high molecular weight polyethylene (UHMWPE)
- Very low coefficient of friction
- Higher strength comparable to conventional steel wire rope
- Weight up to 7 times lower than wire rope
- Easier handling
- Increased safety (no snap back)
- Cover gives extra protection against abrasion, increasing the service life of the rope
Specifications
| Dia. | Circ. | Weight | MBL (Unspliced) | MBL/LDBF*(Spliced) | ||
|---|---|---|---|---|---|---|
| mm | inch | kg/100m | Ton | kN | Ton | kN |
| 22 | 2 3/4 | 27.7 | 38.9 | 381 | 35 | 343 |
| 24 | 3 | 33 | 46.2 | 454 | 41.6 | 409 |
| 26 | 3 1/4 | 40.1 | 54.2 | 533 | 48.8 | 479 |
| 28 | 3 1/2 | 50 | 63 | 618 | 56.7 | 556 |
| 30 | 3 3/4 | 57.3 | 68.3 | 670 | 61.5 | 603 |
| 32 | 4 | 64 | 74 | 726 | 66.6 | 653 |
| 34 | 4 1/4 | 72.2 | 83.4 | 819 | 75.1 | 737 |
| 36 | 4 1/2 | 78.9 | 93 | 912 | 83.7 | 821 |
| 38 | 4 3/4 | 87.9 | 104 | 1,016 | 93.2 | 915 |
| 40 | 5 | 94.8 | 114 | 1,122 | 103 | 1,010 |
| 42 | 5 1/4 | 105 | 126 | 1,237 | 113 | 1,114 |
| 44 | 5 1/2 | 111 | 136 | 1,329 | 122 | 1,196 |
| 46 | 5 3/4 | 121 | 148 | 1,453 | 133 | 1,308 |
| 48 | 6 | 137 | 166 | 1,623 | 149 | 1,461 |
| 50 | 6 1/4 | 149 | 181 | 1,773 | 163 | 1,596 |
| 52 | 6 1/2 | 160 | 196 | 1,918 | 176 | 1,726 |
| 54 | 6 3/4 | 173 | 213 | 2,087 | 191 | 1,878 |
| 56 | 7 | 183 | 230 | 2,255 | 207 | 2,030 |
| 58 | 7 1/4 | 196 | 247 | 2,419 | 222 | 2,178 |
| 60 | 7 1/2 | 205 | 263 | 2,582 | 237 | 2,324 |
| 62 | 7 3/4 | 219 | 281 | 2,757 | 253 | 2,482 |
| 64 | 8 | 236 | 308 | 3,018 | 277 | 2,716 |
| 66 | 8 1/4 | 251 | 327 | 3,210 | 294 | 2,889 |
| 68 | 8 1/2 | 266 | 347 | 3,407 | 313 | 3,067 |
| 70 | 8 3/4 | 282 | 368 | 3,611 | 331 | 3,250 |
| 72 | 9 | 295 | 380 | 3,726 | 342 | 3,354 |
| 74 | 9 1/4 | 312 | 398 | 3,902 | 358 | 3,512 |
| 76 | 9 1/2 | 329 | 420 | 4,116 | 378 | 3,704 |
| 78 | 9 3/4 | 346 | 442 | 4,335 | 398 | 3,902 |
| 80 | 10 | 359 | 458 | 4,489 | 412 | 4,040 |
*LDBF as per OCIMF MEG4 recomendations
(spliced dry condition (wet for nylon))
**Weights are with polyester cover, weights with other covers are available upon request
Elongation
| Elongation at% of MBL: | |
| MBL | Elongation |
|---|---|
| 20% | 1.6% |
| 40% | 2.8% |
| 60% | 3.8% |
| 100% | 5.0% |
