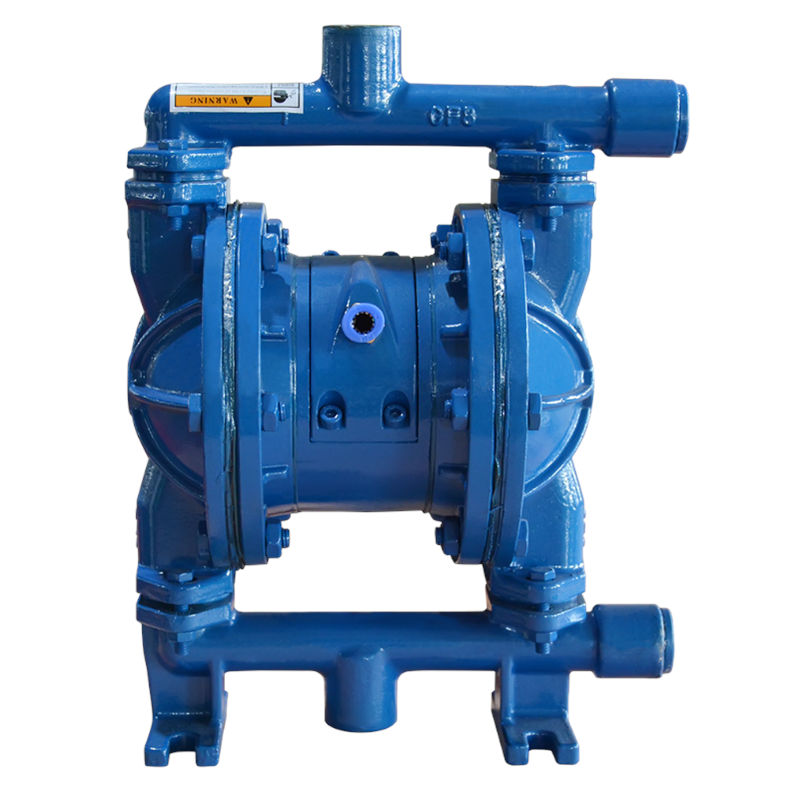

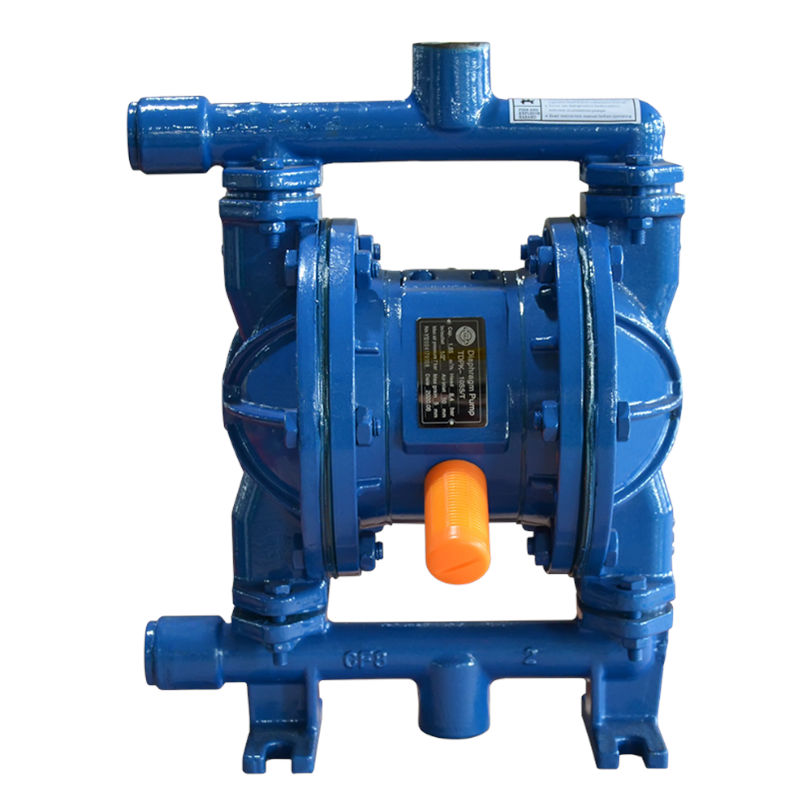

TETRA TDPK-15 AL/B Pneumatic diaphragm pump, aluminum frame, buna diaphragms, in/out 1/2″
Description
The TETRA TDPK-15 AL/B Pneumatic diaphragm pump is a versatile industrial pump designed for transferring fluids in various applications. With an aluminum frame construction, it offers durability and resistance to corrosion, making it suitable for demanding environments.
Featuring Buna diaphragms, this pump is capable of handling a wide range of fluids, including those that are corrosive or abrasive. Buna diaphragms are known for their flexibility and chemical resistance, allowing for reliable operation even with challenging fluids.
The pump is equipped with 1/2″ inlet and outlet ports, enabling efficient fluid transfer. This size is suitable for moderate flow rates and is commonly used in many industrial settings.
Overall, the TETRA TDPK-15 AL/B Pneumatic diaphragm pump offers reliable performance, durability, and versatility, making it a valuable asset in industries such as chemical processing, wastewater treatment, and more.
SKU: 11305
IMPA: 591601
Specifications
| Specs: | |
| Inlet size | 1/2″ BSP |
| Discharge size | 1/2″ BSP |
| Body material | Aluminum |
| Diaphragm material | Buna |
| Air inlet | 3/8 ” BSP |
| Flow rate | 1.85 m3/h |
| Suction lift | 5 m |

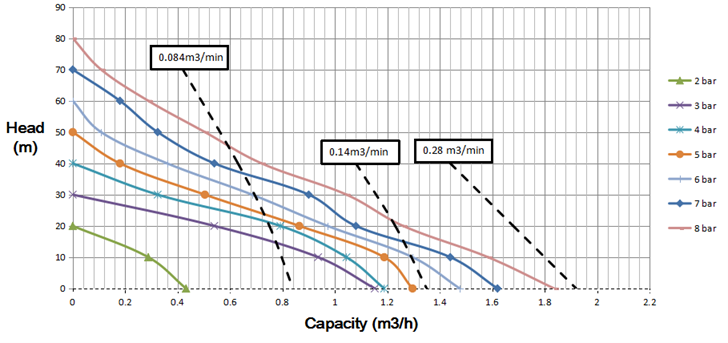

| Head | 0 – 84 m |
| Max. grain size | 2.5 mm |
| Max. air consumption | 170 L/min |
| Weight | 6,7 KG |
Spare Parts
| Spare part | Model | Qty Per Pump | Tetra part number | |
| Buna | Teflon | |||
| Diaphragm | TDPK-15 | 2 | 8117 | 8116 |
| Ball | TDPK-15 | 4 | 8119 | 8121 |
| Ball seat | TDPK-15 | 4 | 8118 | 8120 |
| Spare set | TDPK-15 | 1 | 11808 | 9715 |
Models

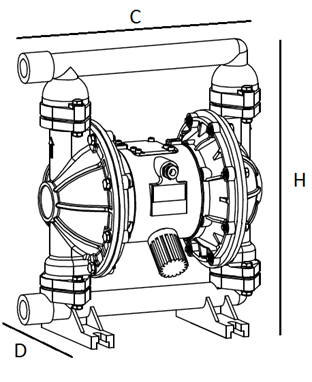

| Model | C | D | H |
| TDPK-15 | 195 | 150 | 251 |
| TDPK-25 | 380 | 230 | 437 |
| TDPK-40 | |||
| TDPK-50 | 489 | 345 | 700 |
| TDPK-80 | 565 | 450 | 865 |
| TDPK-100 |
*Dimensions in mm.
