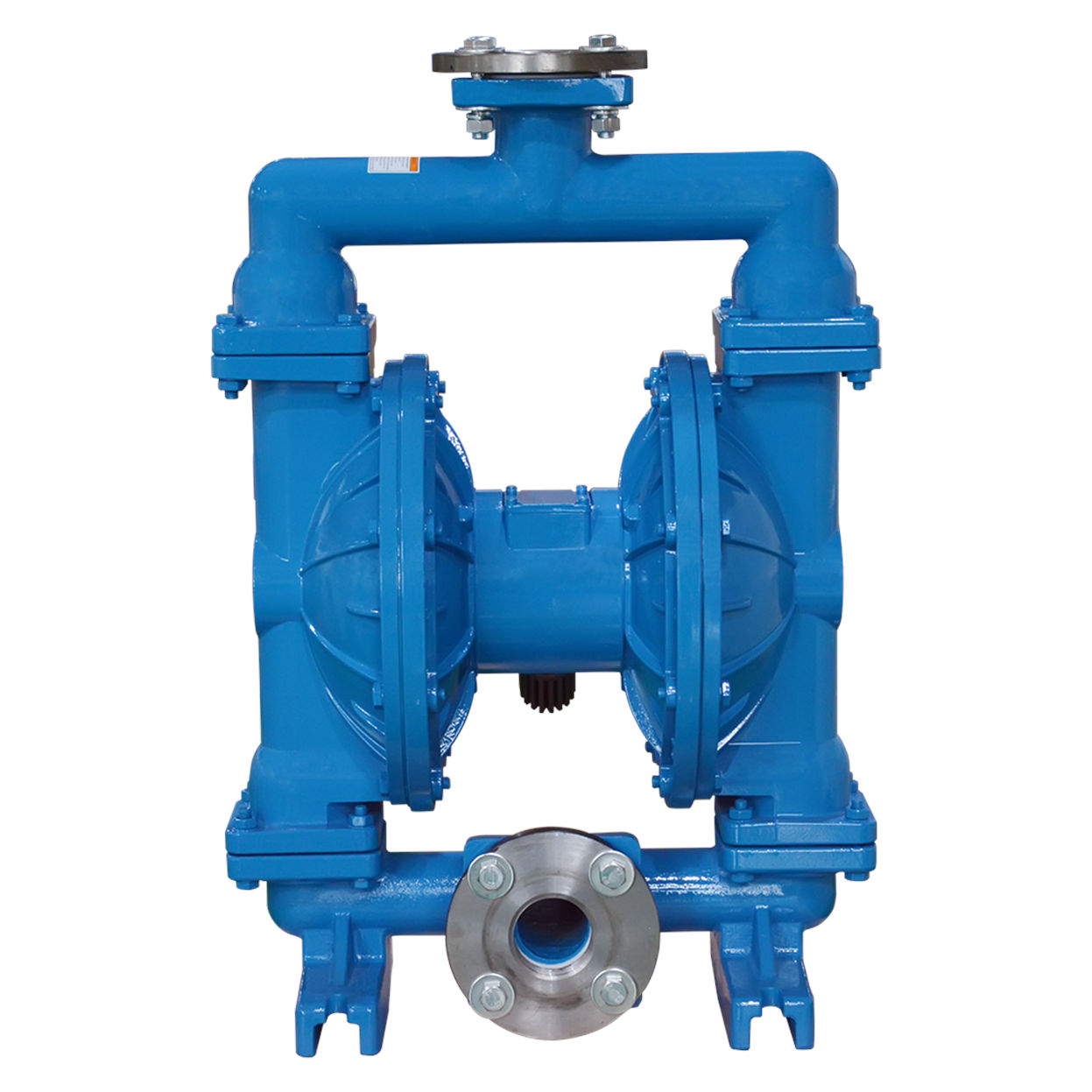

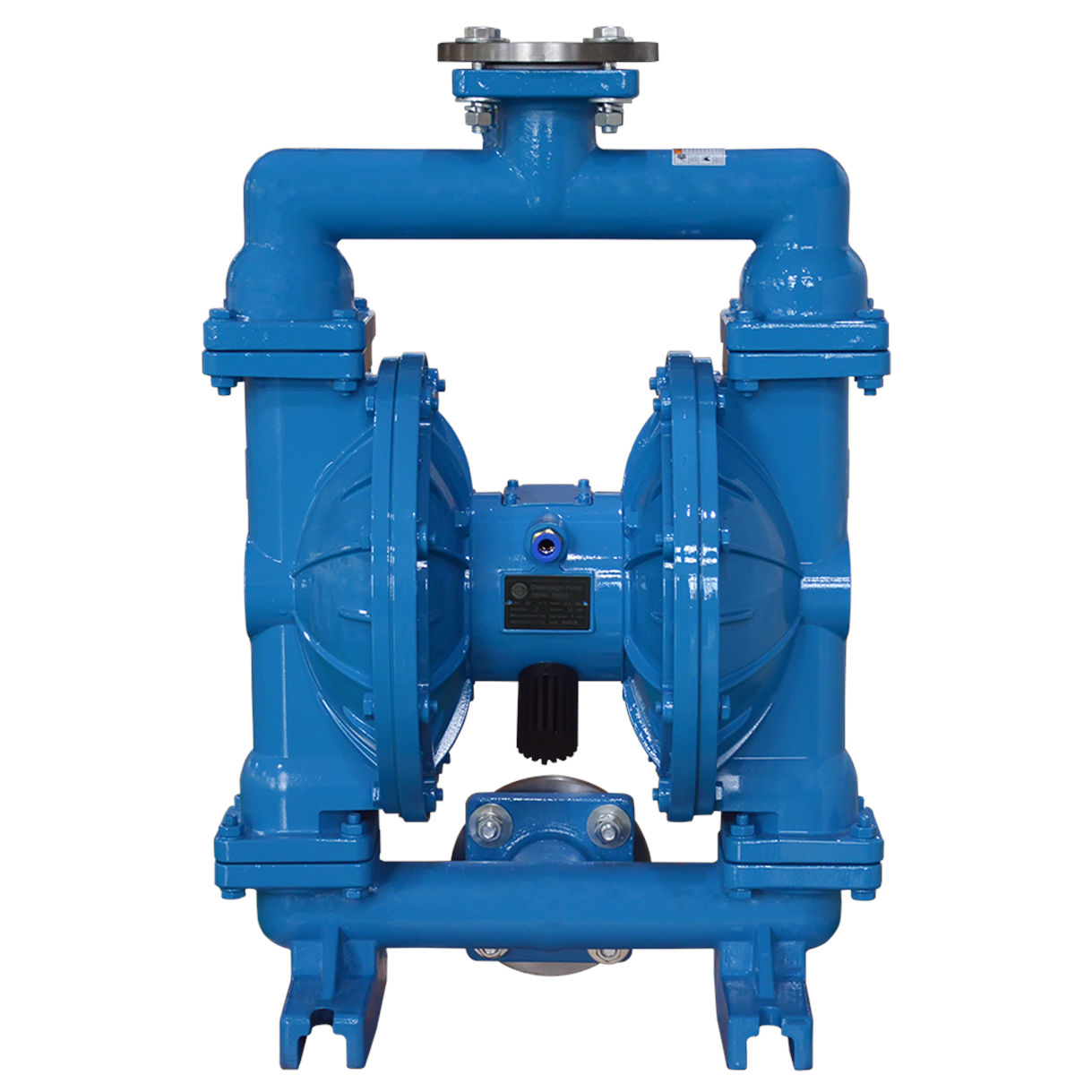

TETRA TDPK-50 AL/B Pneumatic diaphragm pump, aluminum frame, buna diaphragms, in/out 2″

Description

The TETRA TDPK-50 AL/B is an industrial-grade pneumatic diaphragm pump designed for efficiently transferring fluids in various applications. With its aluminum frame construction, this pump offers durability and resistance to corrosion, ensuring reliable operation even in demanding environments.

Equipped with Buna diaphragms, the TDPK-50 AL/B is capable of handling a wide range of fluids, including corrosive or abrasive substances. Buna diaphragms are known for their flexibility and chemical resistance, contributing to the pump’s overall reliability and longevity.

Featuring 2″ inlet and outlet ports, this pump facilitates efficient fluid transfer, accommodating high flow rates and making it suitable for applications requiring substantial fluid volumes.

In summary, the TETRA TDPK-50 AL/B Pneumatic diaphragm pump delivers robust performance, durability, and versatility, making it well-suited for use across a wide range of industries, including chemical processing, wastewater treatment, and more.

SKU: 11305

IMPA: 591601

Specifications

Specs:
Inlet size	2” – DIN2566
Discharge size	2” – DIN2566
Body material	Aluminium
Diaphragm material	Buna
Air inlet	1/2 “

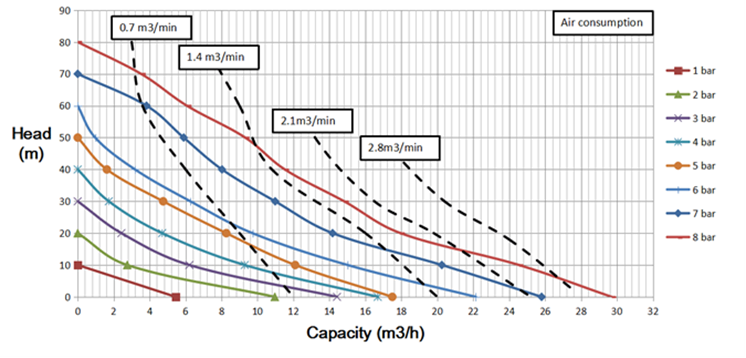

Flow rate	30 m3/h
Suction lift	7 m
Head	0 – 84 m
Max. grain size	6 mm
Max. air consumption	1870 L/min
Weight	31 KG

Spare Parts

Spare part	Model	Qty Per Pump	Tetra part number
			Buna	Teflon
Diaphragm	TDPK-50	2	8123	8127
Ball	TDPK-50	4	8124	8126
Ball seat	TDPK-50	4	8125	7714
Spare set	TDPK-50	1	8459	8460

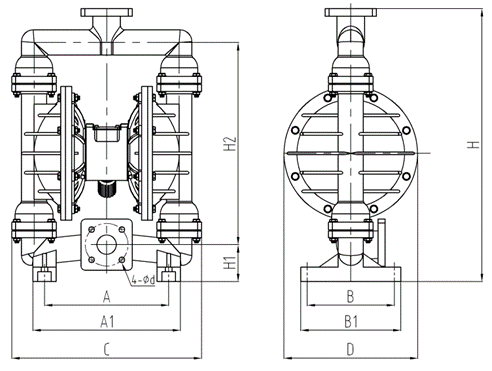

Models

Model	A	A1	B	B1	C	D	H	H1	H2
TDPK-15	118	142	80	100	195	150	251	40	228
TDPK-25	220	225	150	190	380	230	437	49	365
TDPK-40
TDPK-50	320	380	223	260	489	345	700	95	522
TDPK-80	426	569	220	263	565	450	865	100	776
TDPK-100

*Dimensions in mm.
